2004 Ford Explorer Fuse Layout. 2004 Ford Explorer Fuse Diagram This Explorer has 5 different fuse boxes: Passenger compartment fuse panel diagram FUSEAMPSCIRCUIT PROTECTEDF2.130APower Seat Switch, LeftF2.220ARoof Opening Panel Motor Assembly (15790), Heated seat Module, Passenger side Front (14C721), Heated Seat module, Drive side FrontF2.320AAudio Unit (18808), Subwoofer Amplifier (18C804)F2.45AWinshield Wiper Motor (17508)F2.515AIndicator Flasher Relay (13350)F2.610AHorn, RightF2.715AExterior Rear View Mirror, Left, Exterior Rear View.

In this article, we consider the third-generation Ford Explorer (U152), produced from 2003 to 2005 To remove a fuse use the fuse puller tool provided on the fuse panel box

Fuse Box Diagram For 2004 Ford Explorer

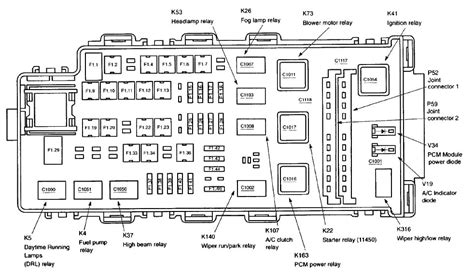

FUSEAMPSCIRCUIT PROTECTEDF2.130APower Seat Switch, LeftF2.220ARoof Opening Panel Motor Assembly (15790), Heated seat Module, Passenger side Front (14C721), Heated Seat module, Drive side FrontF2.320AAudio Unit (18808), Subwoofer Amplifier (18C804)F2.45AWinshield Wiper Motor (17508)F2.515AIndicator Flasher Relay (13350)F2.610AHorn, RightF2.715AExterior Rear View Mirror, Left, Exterior Rear View. In this article, we consider the third-generation Ford Explorer (U152), produced from 2003 to 2005 Passenger compartment fuse panel (top side) diagram

2004 Ford Explorer Fuse Box Location Wiring Diagram. To remove a fuse use the fuse puller tool provided on the fuse panel box Coil on plug (2001-2003), HEGO (2004-2005), VMV (2004-2005), CMS (2004-2005), ESM (2004-2005), CVS (2004-2005) 39: 15:

The Ultimate Guide to 04 Ford Explorer Fuse Diagram. With a 2004 Ford Explorer fuse panel diagram, owners can easily locate and identify the fuses and relays that control various components of the vehicle, such as the headlights, taillights, power windows, and radio Number: Ampers: Protected circuit: 1: 30: Memory seat module, Driver power seat (2003-2005), Driver power lumbar (2005) 2: 20:
